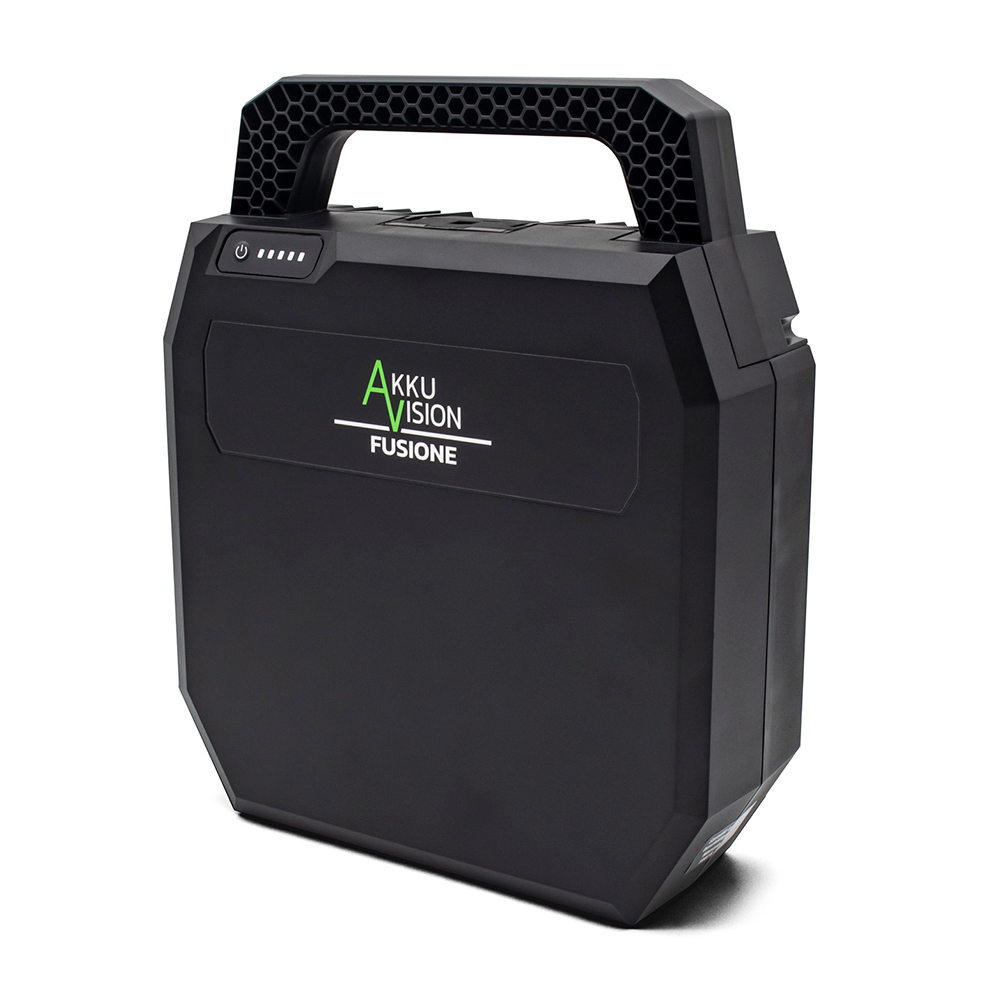

Our FUSIONe 48 V batteries can be individually adapted to different applications. The battery can be provided with our universal mount and features charging, discharging and a locking system if required. With our (fast) charger up to 12 A, the battery is ready to be used again quickly. The charging status can be checked on the 5-stage capacity display.
Easy Charging
With our special charging concept, the battery can be charged separately and in the application.
Made in Germany
Our batteries and Battery-Management-Systems are developed and produced exclusively in house in Germany.
Multi-Battery
Use several of our FUSIONe batteries with the same voltage and communication in parallel in one system for even more capacity
Modular
Your system can be upgraded at any time with additional Akku Vision batteries. Also with different capacities among each other
| Art.-Nr. | Description | Color | Cell arrangement | Cell dimension | Cell chemistry | Capacity | Dimensions | Weight | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12002 | FUSIONe M 48 V | Black | 16S4P | 26700 | LFP | 922 Wh | ca. 342 x 232,5 x 94 mm | 8,2 kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12004-002 | FUSIONe S 48 V | Black | 13S5P | 21700 | NMC | 1170 Wh | ca. 282 x 232,5 x 94 mm | 6,2 kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12004-004 | FUSIONe S 48 V | Grey | 13S5P | 21700 | NMC | 1170 Wh | ca. 282 x 232,5 x 94 mm | 6,2 kg | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12008-002 | Battery Mounting S | Black | incl. cable set 400 mm / open strands / UL standard | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12008-003 | Battery Mounting S | Grey | incl. cable set 400 mm / open strands / UL standard | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12009 | Battery Mounting M | Schwarz | incl. cable set 400 mm / open strands / UL standard (in development) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 12062 | Charger 12 A universal for LFP and NMC | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
